Pressure Proof Washing Machine Inlet Valve
CIXI LIHE is leading supplier of Pressure proof Washing Machine Inlet Valve. We focus on high-quality washing machine spare parts that meet international market standards and customer demands.
Pressure proof Washing Machine Inlet Valve is specially designed to withstand high water pressure and ensure stable, long-lasting performance in various working conditions. Made of high-quality materials and with strict production control
Product Parameter (Specification)
| Product code | IV019 |
| Rated voltage | AC220-240V |
| Water pressure range | 0.02~1.0Mpa |
| Medium temperature | 0~100℃ |
| Working life | ≥100,000 times |
| Insulation Class | Class B (heat resistance up to 130°C) |
| Leakage Current | ≤ 0.5mA |
| Transport Package | Carton |
| MOQ | Negotiable |
| Production lead time | 15-30days depends on order quantity |
| Place of origin | Ningbo, China |
Production Details

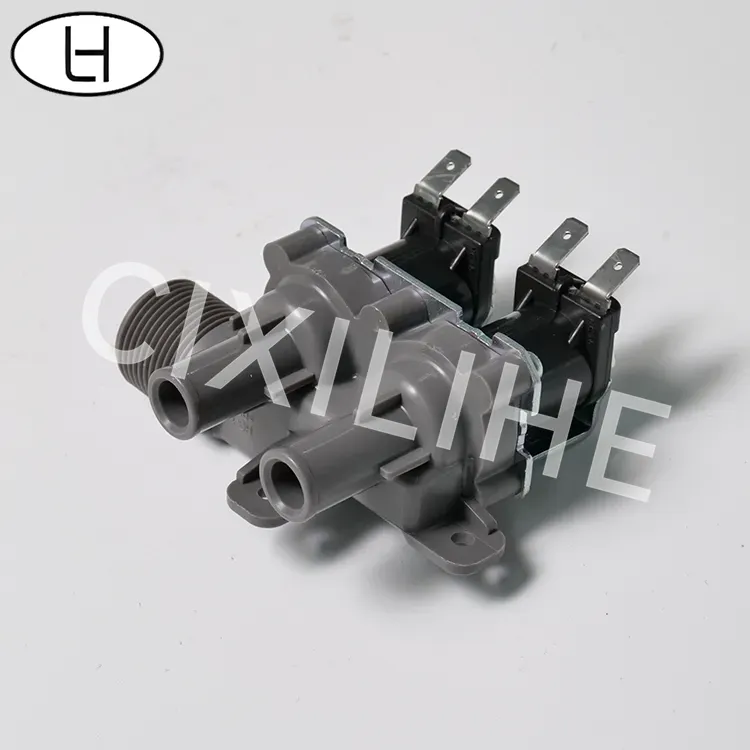

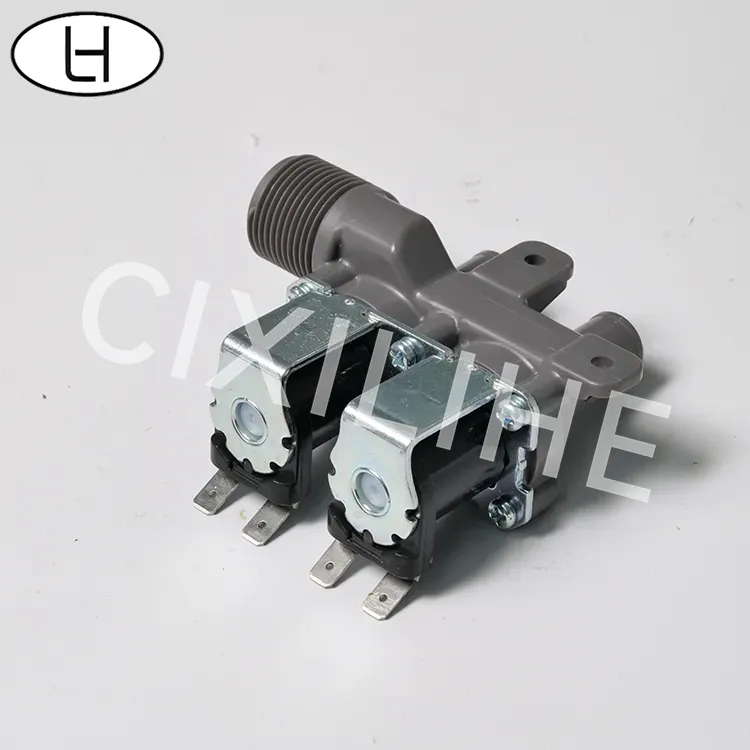

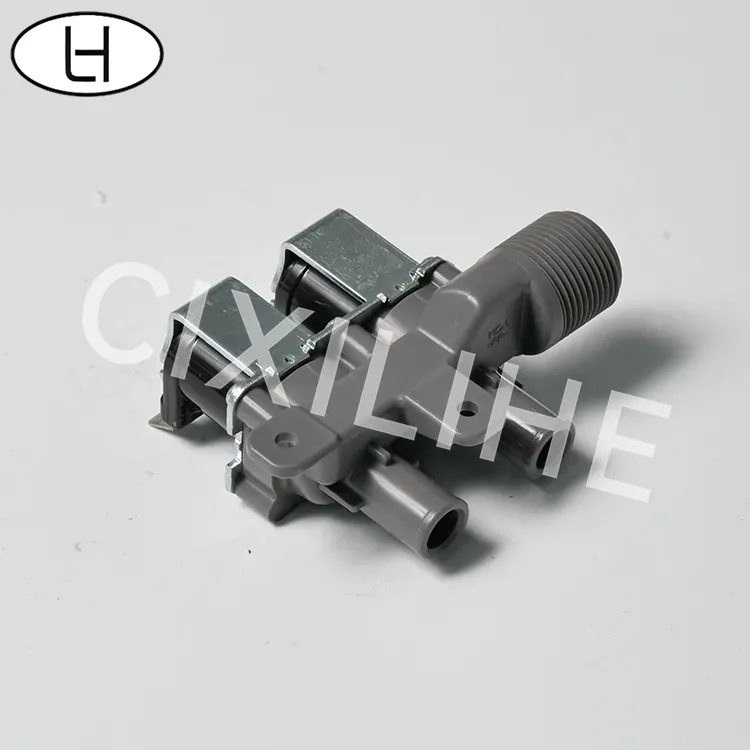

Pressure proof Washing Machine Inlet Valve
Product Feature
• Excellent pressure resistance.
• Fast response and reliable on/off operation.
• Durable construction for long-term use.
Structure & Working Principle
• Consists of a solenoid coil, plunger, spring, rubber diaphragm, and valve body.
• When powered, the coil creates a magnetic field that lifts the plunger, opening the water passage.
• When power is cut, the spring pushes the plunger back to seal the valve.

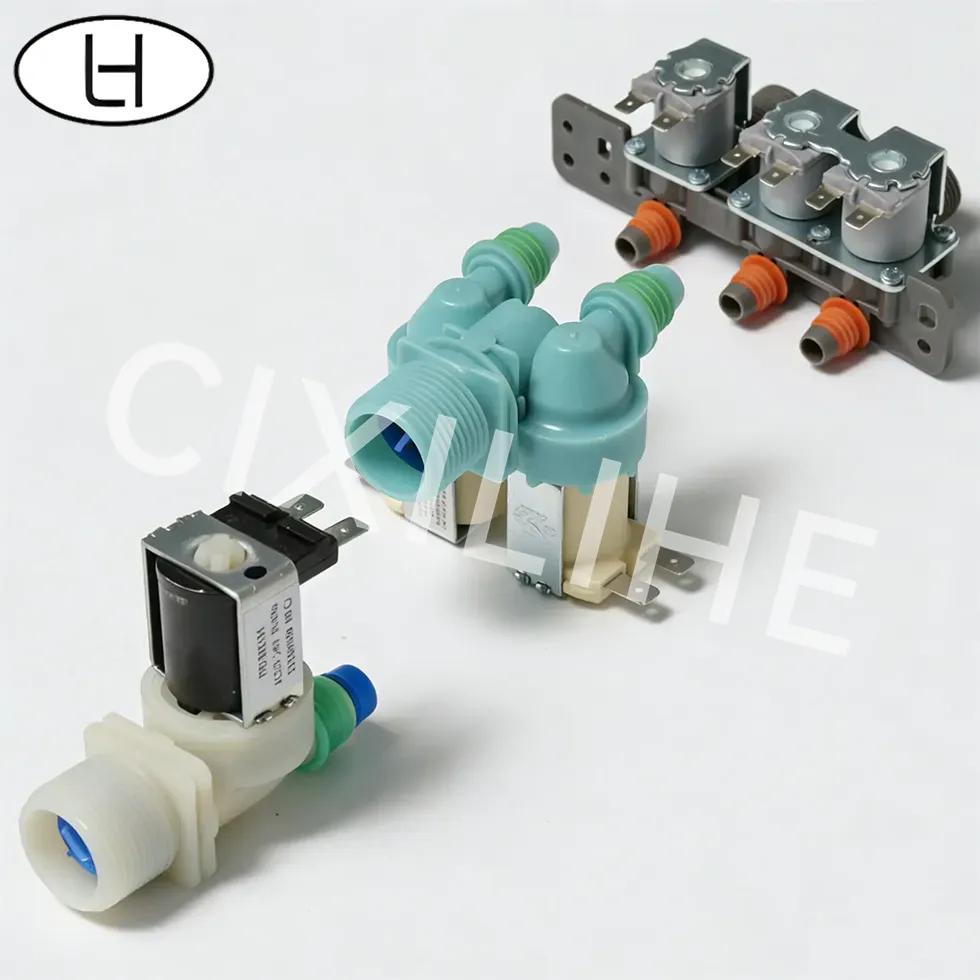

Common Types
• Single-way inlet valve: for cold water only.
• Dual Inlet Solenoid Valve: controls both cold and hot water supply.
• Triple-way valve: used in models with extra water channels (e.g., detergent, pre-wash).

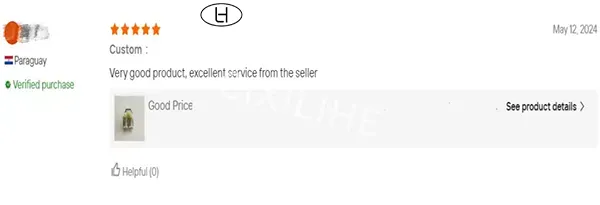

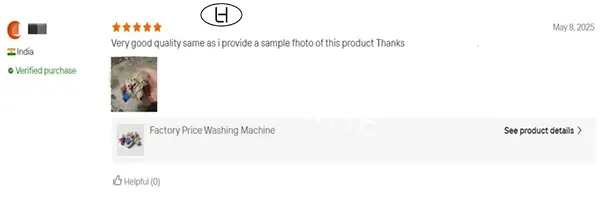

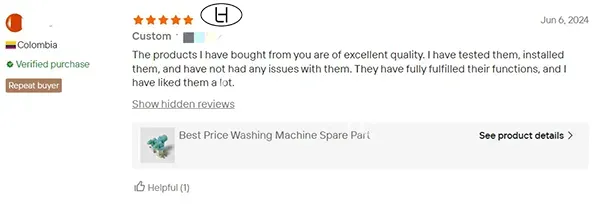

Products Reviews

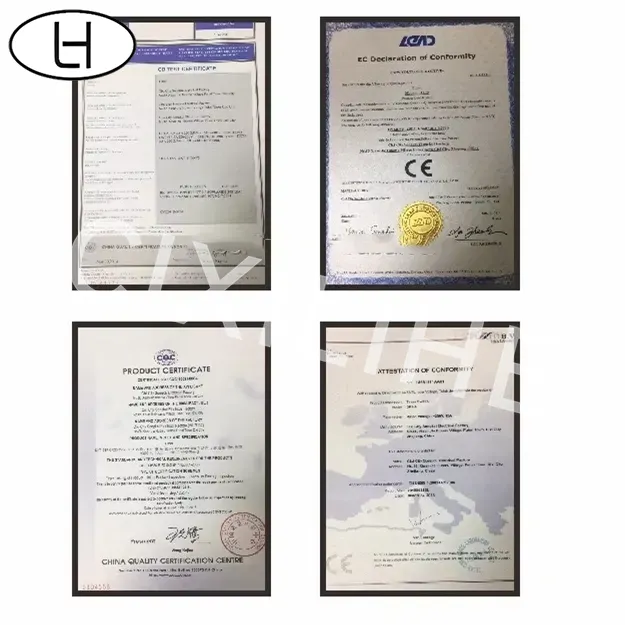

Certifications

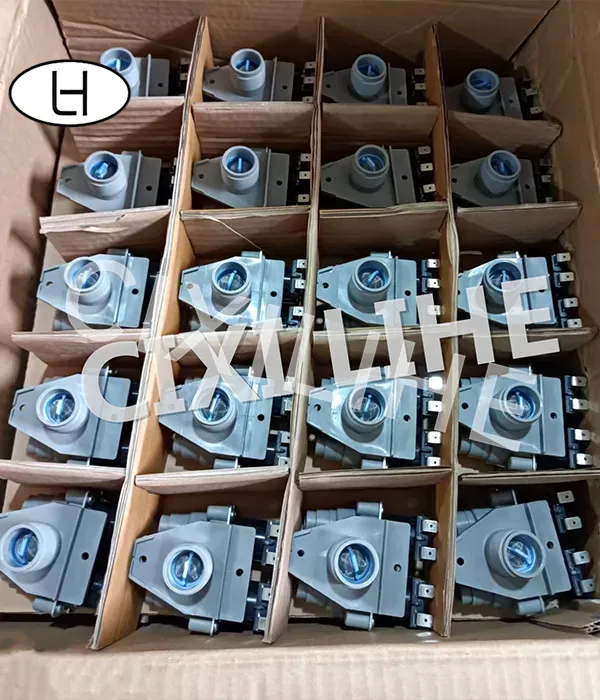

Company Show
CIXI LIHE Pressure proof Washing Machine Inlet Valve feature stable performance, high sealing, and long service life. We accept OEM & ODM orders and look forward to cooperating with you.
