Energy-Saving Washing Machine Solenoid Valve
CIXI LIHE is professional supplier of Energy-Saving Washing Machine Solenoid Valve. All products are strictly inspected before shipment to ensure compatibility and long service life.
Energy-Saving Washing Machine Solenoid Valve can quickly and accurately control the water inlet and cut-off, ensuring stable water flow and safe operation. It features good sealing, low noise, and reliable anti-leakage performance.
Product Parameter (Specification)
| Product code | IV020 |
| Rated voltage | AC220-240V |
| Water pressure range | 0.02~1.0Mpa |
| Medium temperature | 0~100℃ |
| Working life | ≥100,000 times |
| Insulation Class | Class B (heat resistance up to 130°C) |
| Leakage Current | ≤ 0.5mA |
| Transport Package | Carton |
| MOQ | Negotiable |
| Production lead time | 15-30days depends on order quantity |
| Place of origin | Ningbo, China |
Production Details

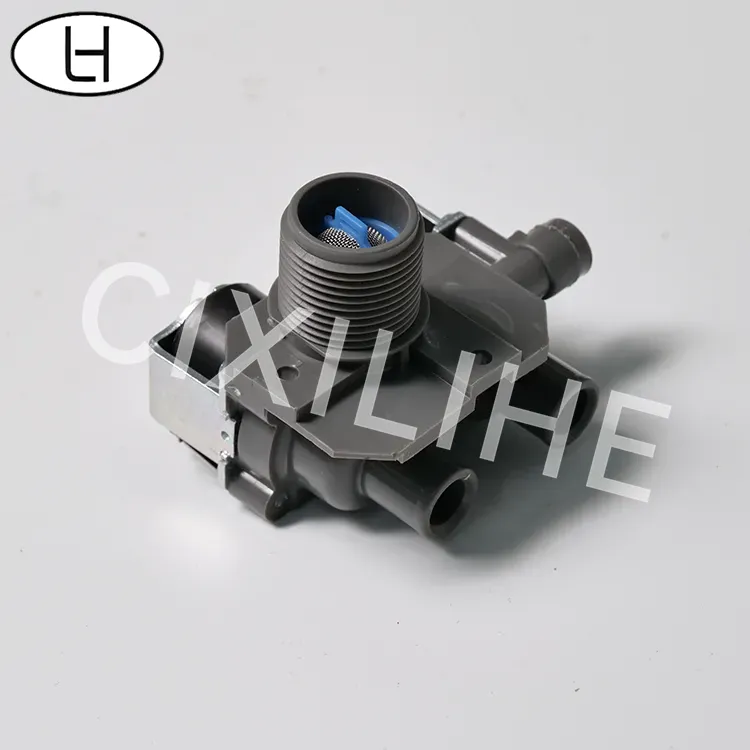

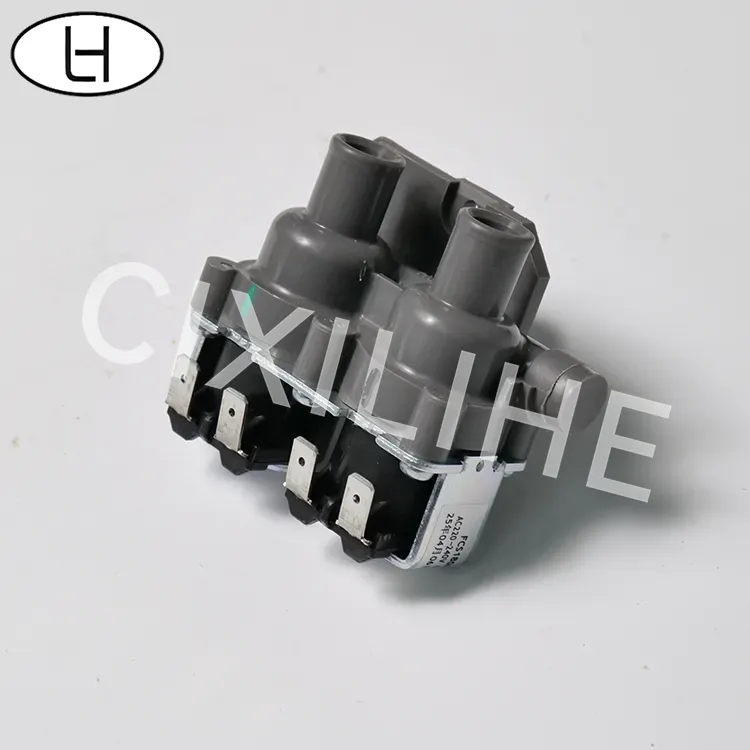

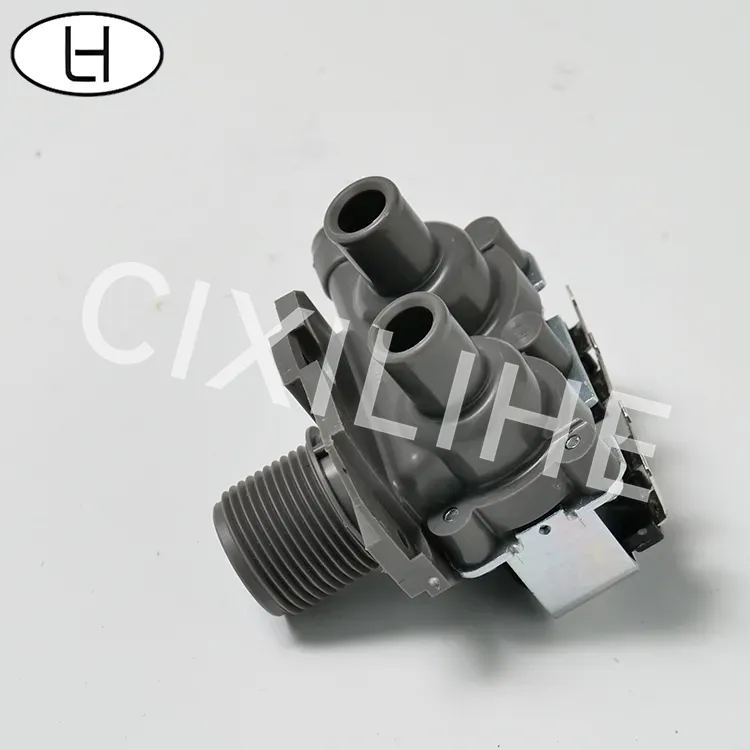

Energy-Saving Washing Machine Solenoid Valve
Product Feature
• Energy-saving coil design.
• Stable and fast water control.
• Corrosion-resistant and aging-resistant materials.
Structure & Working Principle
• Consists of a solenoid coil, plunger, spring, rubber diaphragm, and valve body.
• When powered, the coil creates a magnetic field that lifts the plunger, opening the water passage.
• When power is cut, the spring pushes the plunger back to seal the valve.

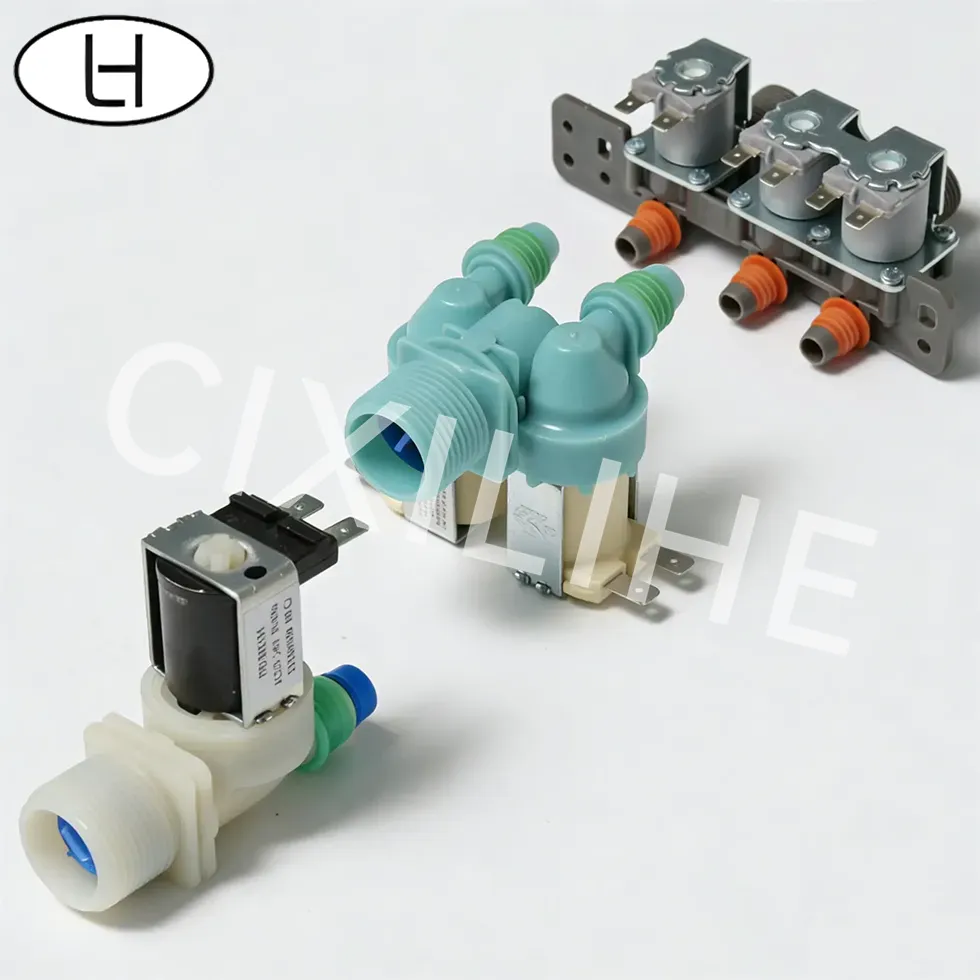

Common Types
• Single-way inlet valve: for cold water only.
• Dual Inlet Solenoid Valve: controls both cold and hot water supply.
• Triple-way valve: used in models with extra water channels (e.g., detergent, pre-wash).

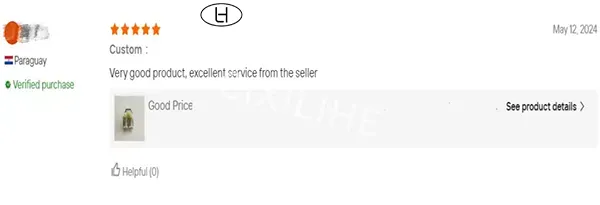

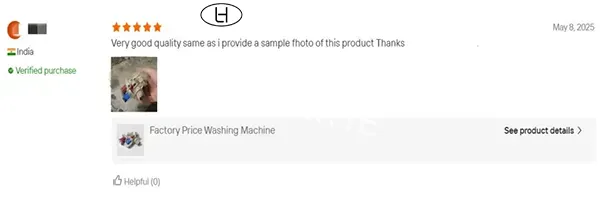

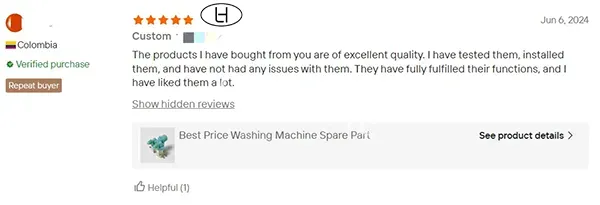

Products Reviews
Certifications

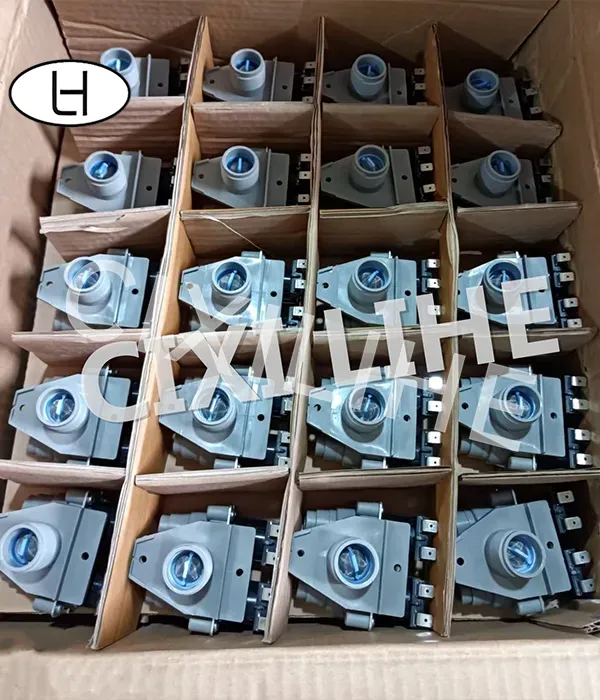

Company Show
CIXI LIHE Energy-Saving Washing Machine Solenoid Valve feature stable performance, high sealing, and long service life. We accept OEM & ODM orders and look forward to cooperating with you.
