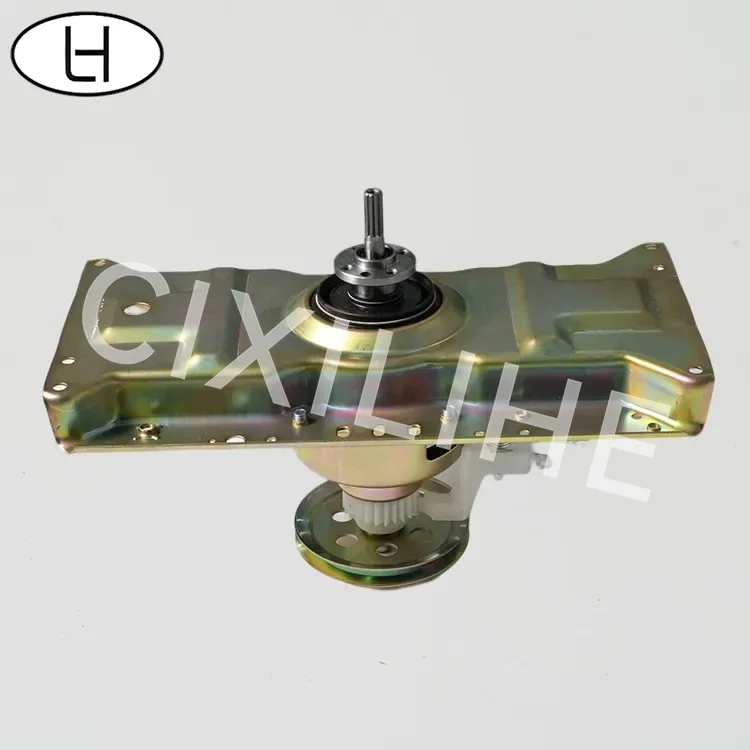

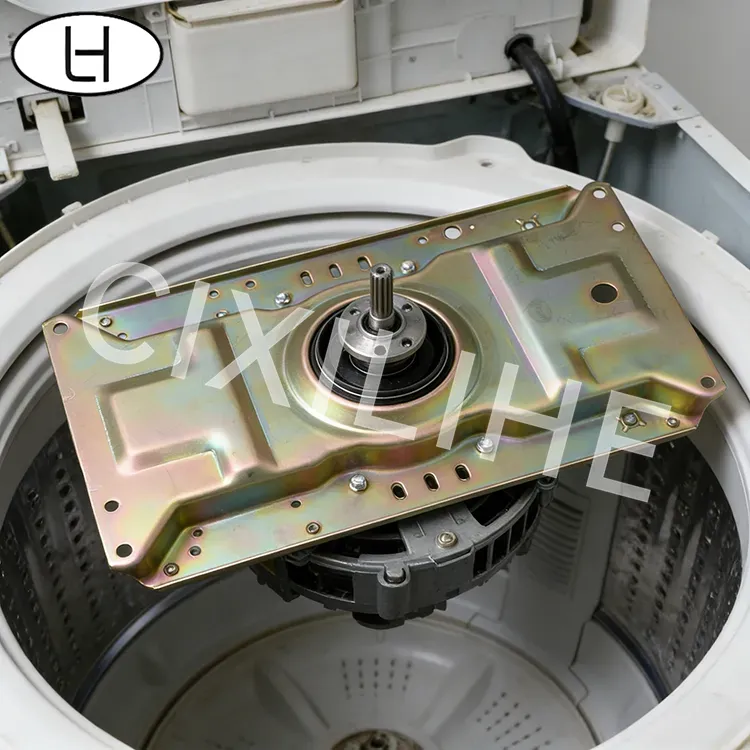

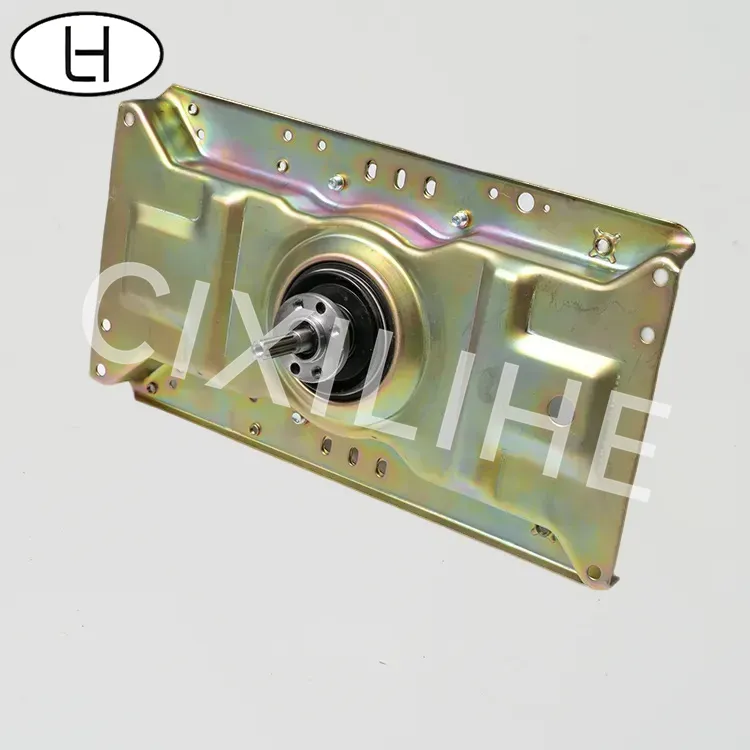

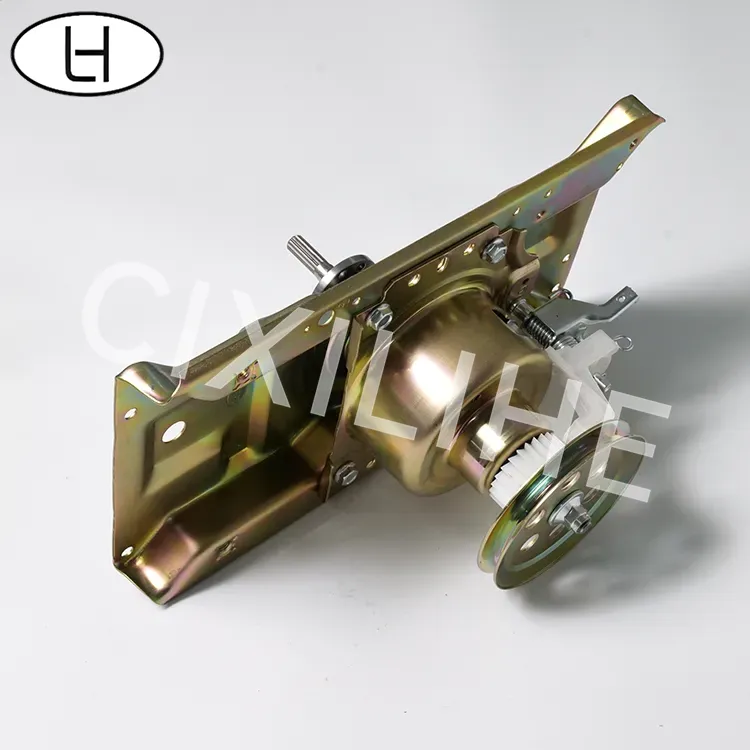

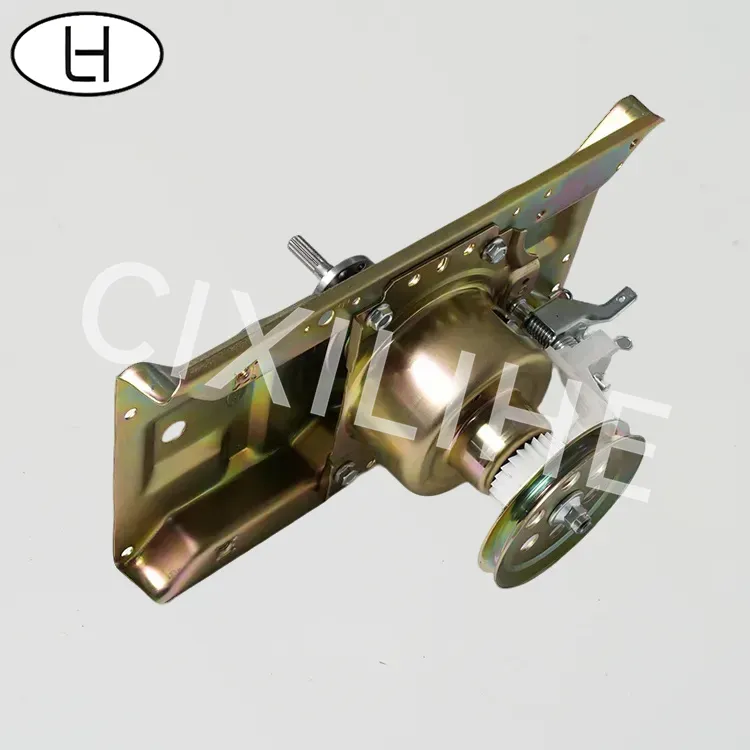

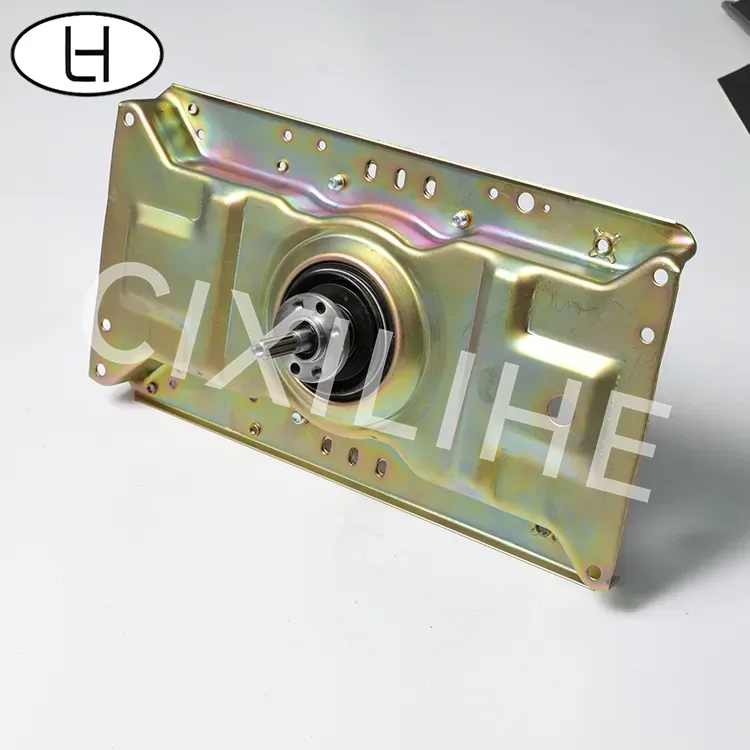

High Speed Washing Machine Clutch

This CIXI LIHE washing machine clutch is suitable for fully automatic washing machines and integrates key functions such as power transmission, speed switching, and brake clutch. It is the core device that ensures smooth switching between washing and dehydration modes of the washing machine.

This High Speed Washing Machine Clutch has a washing mode transmission function. During washing, the motor power is transmitted to the pulsator through an internal gear reduction mechanism, achieving low-speed forward and reverse rotation of the pulsator and completing the rubbing and cleaning of clothes; There is a dehydration mode switching function, and the clutch mechanism operates during dehydration to synchronize the high-speed rotation of the pulsator and the inner bucket, using centrifugal force to achieve clothing dehydration; It has a braking protection function and is equipped with a mechanical braking structure. When stopping, it can quickly brake the inner bucket to avoid safety hazards caused by inertial rotation, and prevent excessive shaking of the inner bucket after dehydration.

Note: CIXI LIHE has a lot of stock for multiple washing machine clutches, fast delivery is available!

Product Parameter (Specification)

Product Feature And Application

Features:

- Stable transmission: Equipped with a galvanized steel plate shell and sealed deep groove ball bearings, the anti-corrosion and splash proof capabilities reach IPX4 protection level. The combination of 1.5mm thick plate and powder metallurgy gears allows the components to withstand a maximum torque of 12N · m and maintain stable transmission even under a rated load of 8-12kg. Its electromagnetic clutch combined with mechanical shift fork control mode enables rapid switching between washing (180-220r/min) and dehydration (1000-1200r/min) modes, and the 0.5s braking response time greatly improves the safety of use.

- High adaptability: With standardized installation holes and quick release structure, it is compatible with mainstream household washing machine models on the market. Maintenance and replacement do not require professional modification, balancing performance and practicality.

Applications

This washing machine clutch is mainly used in the fields of household, light commercial, and after-sales maintenance of laundry equipment.

- Home use: Suitable for large capacity 8-12kg household and small mini pulsator washing machines, meeting the power transmission needs of daily clothing cleaning and dehydration.

- Light commercial use: It can be used as a pulsator equipment for coin operated washing machines in apartments and small laundry rooms in hotels, suitable for high-frequency usage needs.

- After sales maintenance: This washing machine clutch is a commonly used replacement part for home appliance repair service providers and parts dealers, covering the full chain application needs of equipment after-sales maintenance and refurbishment.

Package and Shipping

CIXI LIHE Household Washing Machine Pulsator enjoy a high reputation for high quality in global markets, and we can provide customized packaging services.

Our products have been exported to many different countries, winning high praise and long-term trust from our customers.
