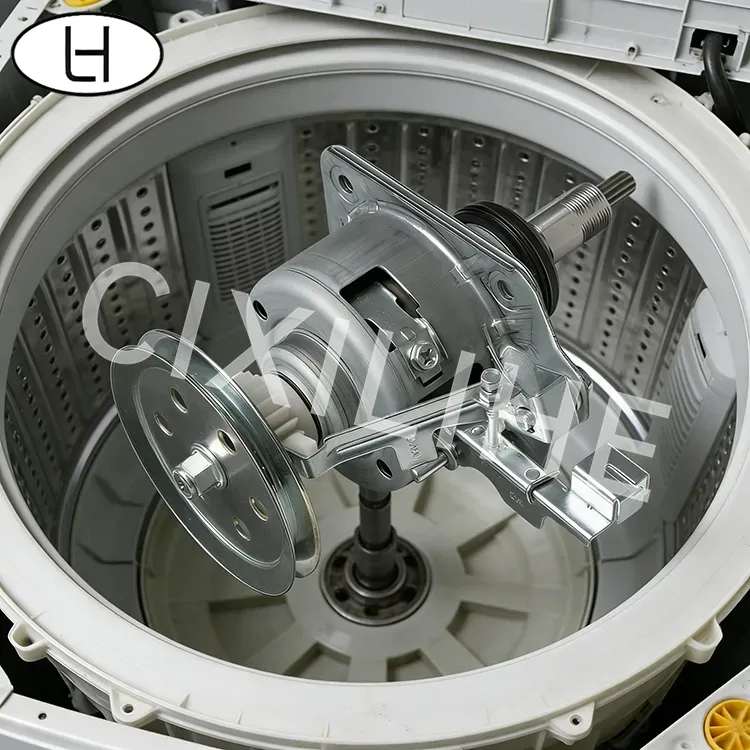

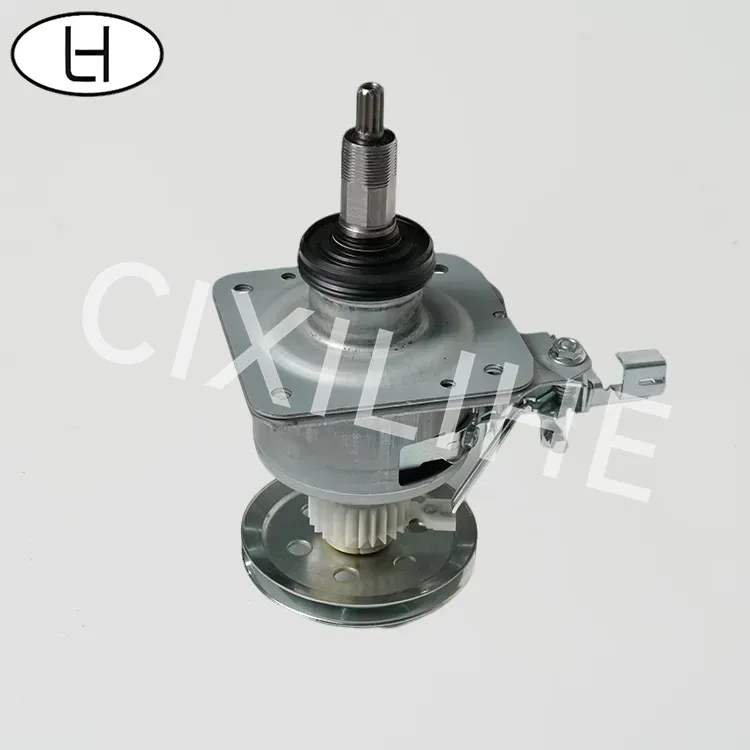

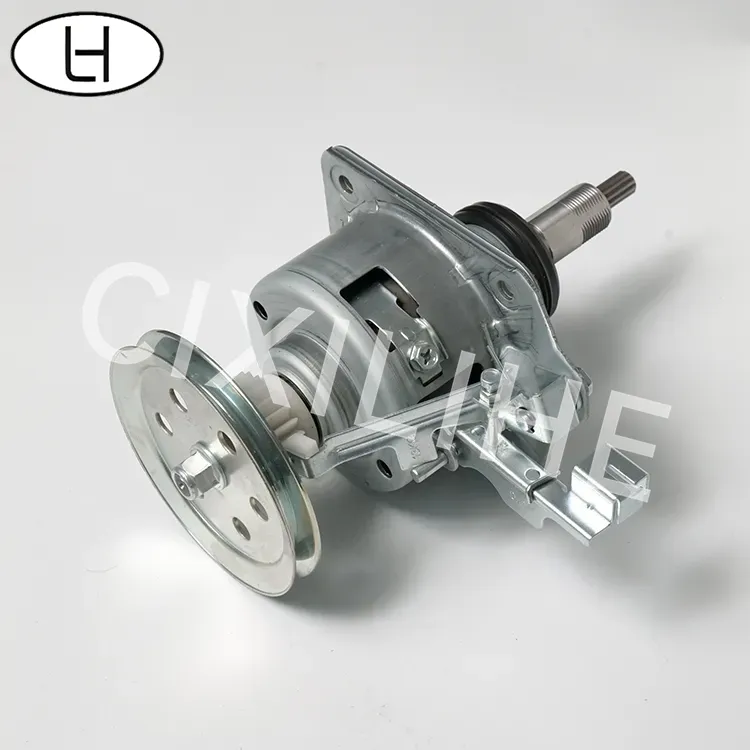

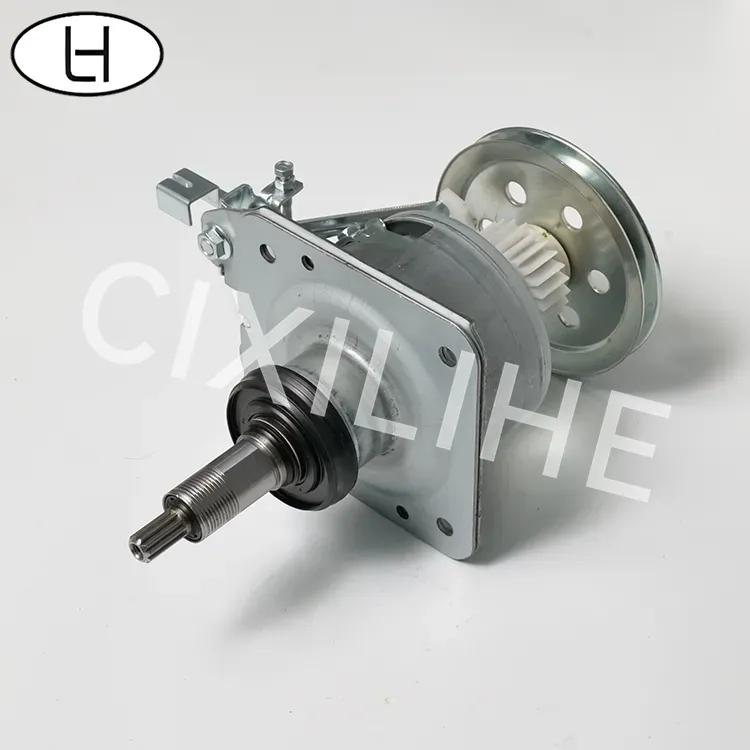

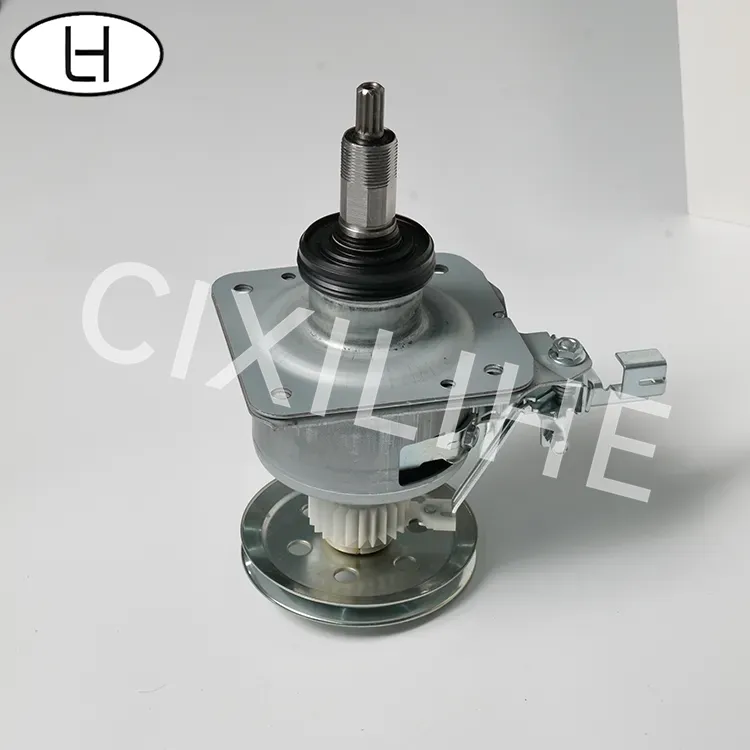

Stable Washing Machine Clutch
CIXI LIHE is a professional manufacturer of Stable Washing Machine Clutch, with over ten years of experience in the field of home appliance accessories. We have fully automated production lines and precision testing equipment, with an annual output of over 3 million clutches.
Our washing machine clutch cover a full range of models such as pulsars and double barrels. With the advantages of stable quality, low noise, and long lifespan, our washing machine clutch has long been matched with well-known washing machine brands at home and abroad, supporting OEM/ODM customization, and exported to markets in South America, the Middle East, Africa, and Asia.
This CIXI LIHE washing machine clutch has three main functions: clutch reduction, clutch, and brake. It can achieve smooth switching between washing and dehydration modes, accurately transmit motor power to regulate the inner drum speed, and also has a brake locking function to ensure safe operation during the dehydration stage.
The product is made of high-strength carbon steel and wear-resistant copper sleeve materials, which have been precision machined and assembled, resulting in high transmission efficiency and low operating noise; The sealed structure has undergone waterproof testing and can effectively prevent water from seeping into internal parts, thereby improving its service life; Strong adaptability, through precise modular design, can match the installation dimensions of multiple mainstream brand pulsator washing machines.
Note: CIXI LIHE has a lot of stock for multiple washing machine clutches, fast delivery is available!
Product Parameter (Specification)
| Product name | Stable Washing Machine Clutch |
| Product code | CLT001 |
| Rated voltage | AC 110V/220V/240V |
| Installation Dimension |
Mounting plate size: 120×120 mm Fixing hole spacing: 100×100 mm |
| Applicable Washer Capacity | 5-10 kg |
| Rated Torque | 12 N·m (washing); 8 N ·m (dewatering) |
| Material to be used | Metal |
| Color | Silver |
| Samples available | Yes, samples available for small quantity. |
| Packing method | 5pcs in one carton |
| MOQ | Negotiable |
| Production lead time | 15-30days depends on order quantity |
| Payment term | T/T or LC at sight |
| FOB loading port | Ningbo or Shanghai China |
| Place of origin | Ningbo, China |
Product Feature And Application
Features:
- This washing machine clutch serves as the core mechanical transmission component for top-load washing machines.
- Forged carbon steel housing clutch, unbeatable impact resistance
- Top-load washer clutch with waterproof NBR seals, no water penetration
- All-in-one core clutch: carbon steel body, copper transmission, NBR sealing
- Premium washer clutch: impact/wear-resistant, water-tight performance guaranteed
Applications
In terms of applications, this washing machine clutch is compatible with 5–10kg household top-load washing machines and fits the installation dimensions of mainstream brands.
It is widely used for replacement in the appliance repair market. Additionally, it supports customized torque, transmission ratios and installation specifications, catering to export demands across global regions with different voltage standards, making it a cost-effective transmission accessory that balances performance and compatibility.
Package and Shipping
CIXI LIHE Household Washing Machine Pulsator enjoy a high reputation for high quality in global markets, and we can provide customized packaging services.
Our products have been exported to many different countries, winning high praise and long-term trust from our customers.
